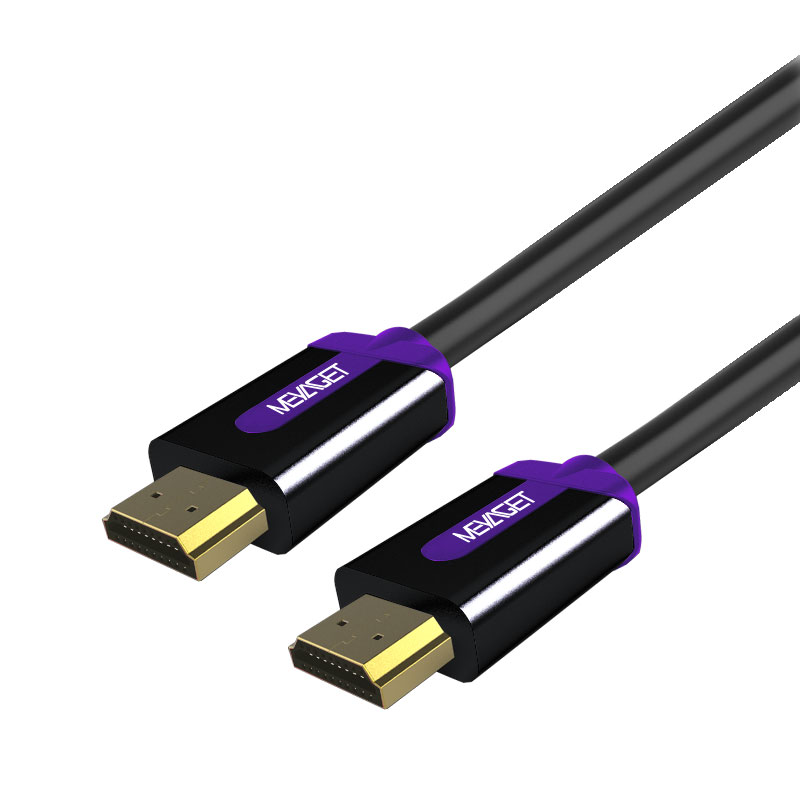

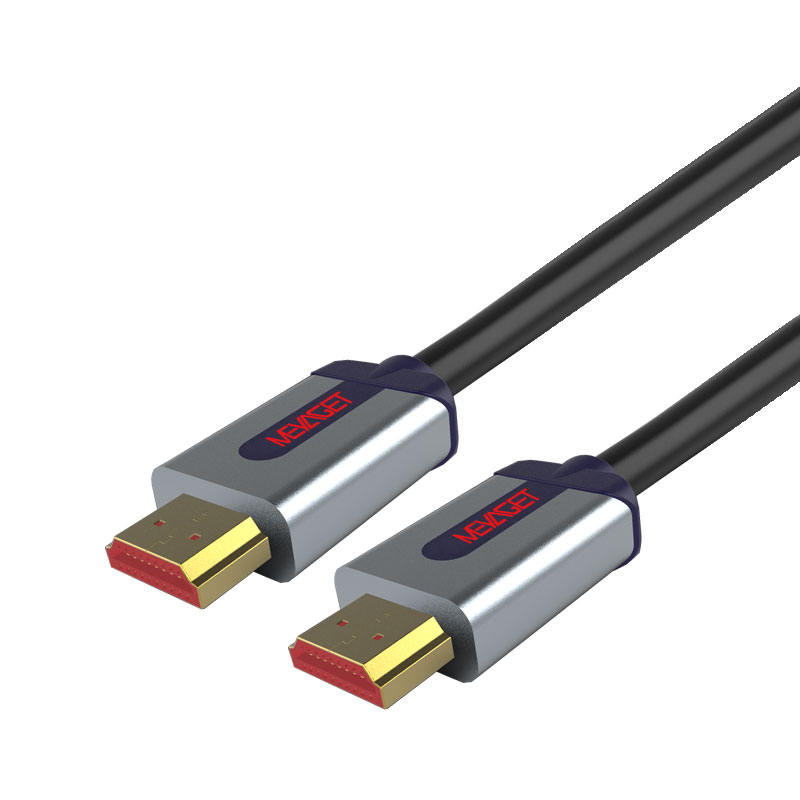

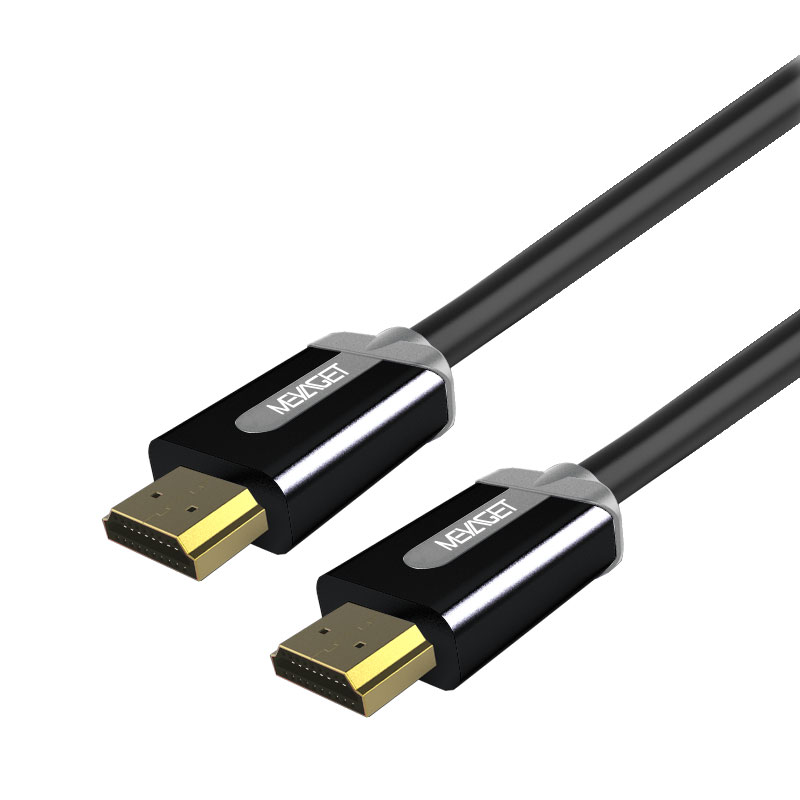

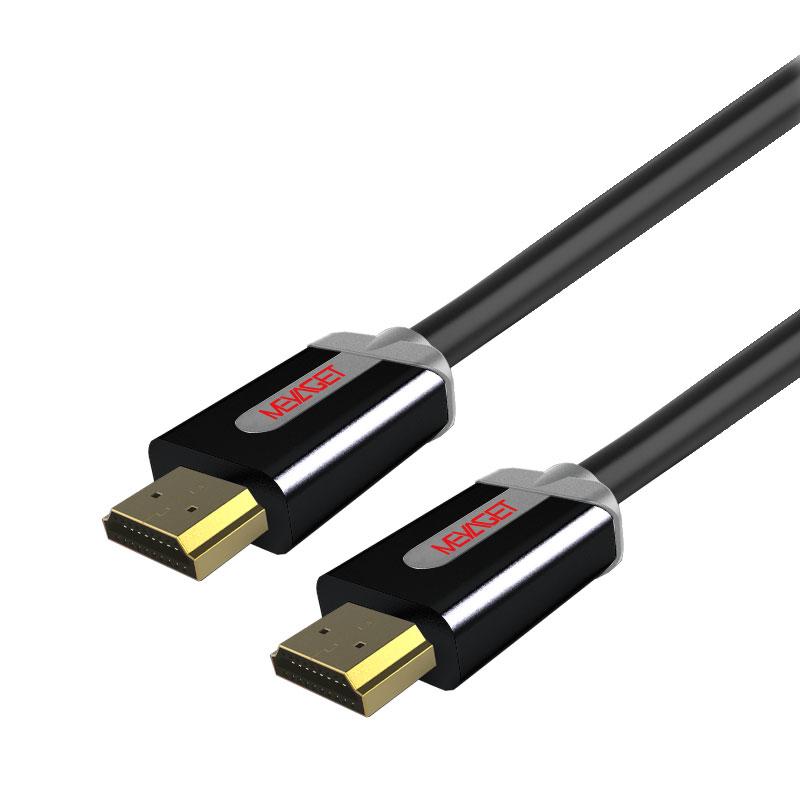

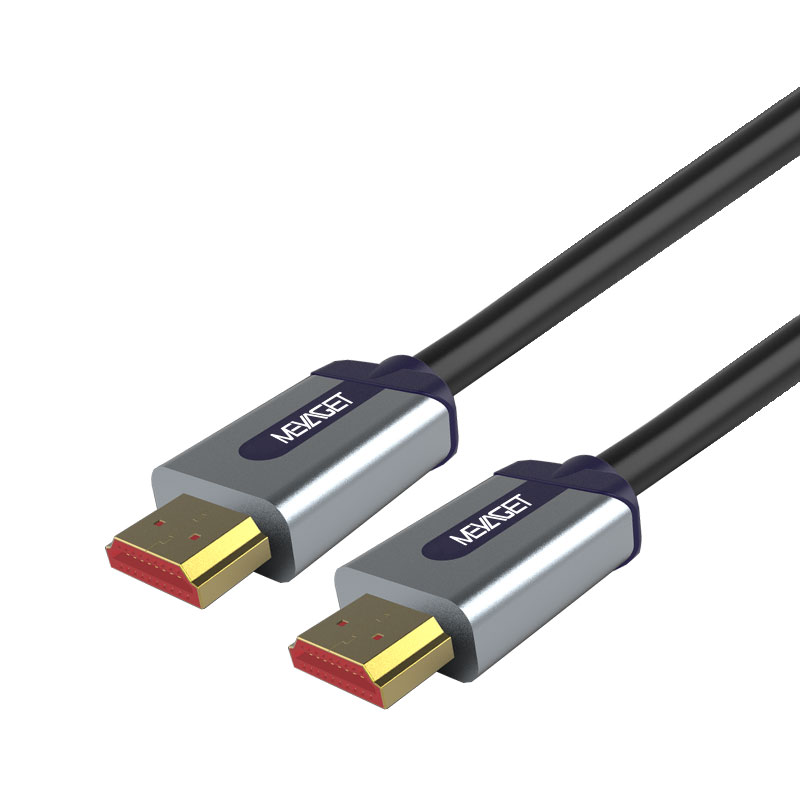

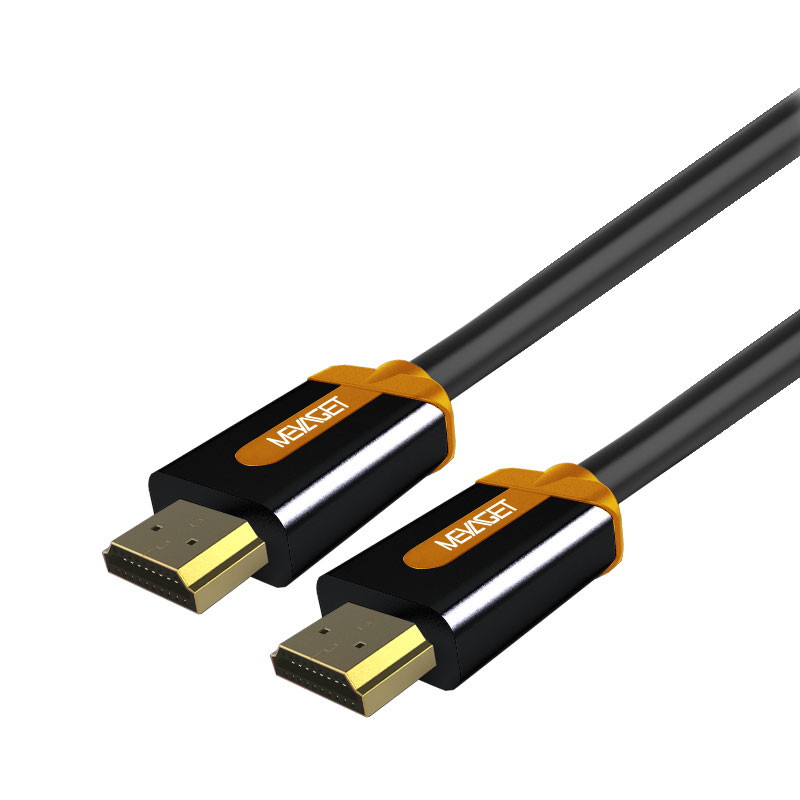

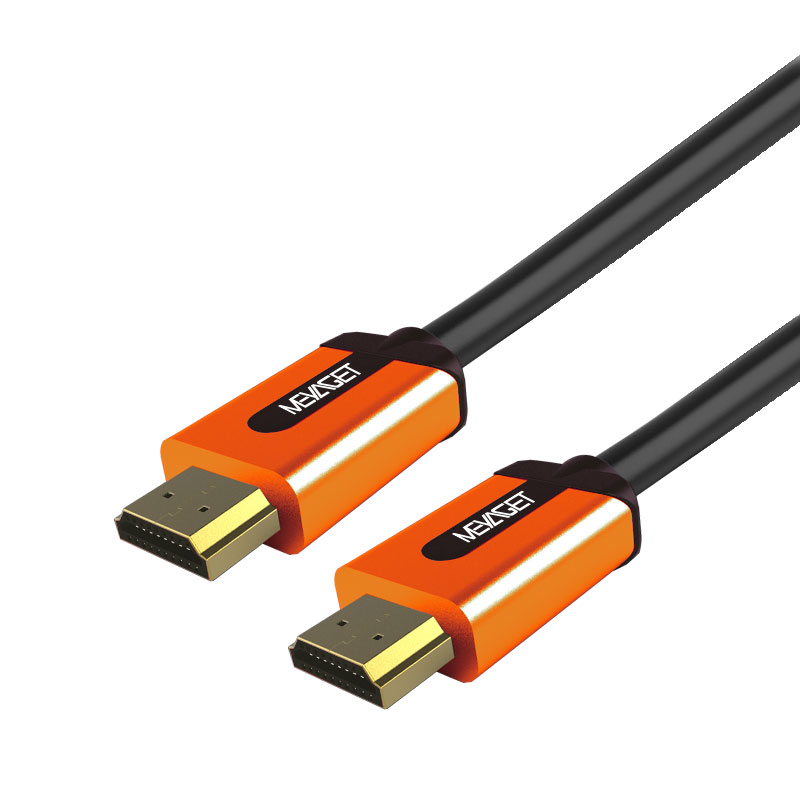

4K HDMI Cable HD1100

4K HDMI Cable HD1100

4K HDMI Cable HD1100

Model No:
HD1100
Versions
1.4v,2.0v (optional)
Appearance:
Injection Plastic
Connector Type:
HDMI 19 P A/M to A/M
Connector:
24k Gold-plated
Conductor:
High purity Oxygen Free Copper (CU)
Gauge:
AWG: 26/28/30(optional)
Insulation:
HD-PE
Shielding:
AL+ ML+ Braiding (Triple shielding )
Outer Diamete:
7.3mm,8.0mm(optional)
Jacket:
pvc
Color:
Black, red, white, yellow, blue
Length:
3FT to 60FT (1m-20m) optional
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Parameters

这里可以自定义设置
这里可以自定义设置
SpecificationAdvantages
Conductors99.99% Oxygen-free copperto deliver high-quality and stable digital signal
Insulation (inner jacket)HD-PEUsing foamed PE as the insulation, ensure image quality and transmit image signal with stability.
First shielding100% Aluminum foilprevent high frequency noises and interference  of outward electromagnetic energy
Second shielding100% Aluminum foilprevent high frequency noises and interference of outward electromagnetic energy
Third shielding95% AL+MG braidfor maximum avoiding of EMI and RFI
Insulation (Outer jacket)Environmental PVC jacket/protective nylon sleeve. (color optional)Long lifetime; good protection for cable;
Safe
appearanceInjection Plastic,Zn or Al alloy Metal shell typeNice looking, high-end HDMI CABLE product
ConnectorGold platedensure superior signal transfer and lifetime of maximum performance
Configuration19+1 pinFully compliant to V2.0 specification
CertificationRoHS,UL,CEAuthorized Certification for safety and security
ColorPearl golden, Matte black, Silver, Golden, Shiny black, white porcelain, black porcelain,chromel AND MOREVariety of color options and attractive design to meet the needs of different customers
Available gauge24/26/28/30AWGAWG optional
Outer DiameteW13.5mm X H3.55mm    W16.8mm X H3.8mm     W20.5mm X H4.5mm AWG is correspondent to outer diameter.
24AWG-W20.5mm X H4.5mm , 26AWG-W16.8mm X H3.8mm
28AWG-W13.5mm X H3.55mm ,  30AWG-W13.5mm X H3.55mm
Available versions and lengthsV2.0 up to 40m(1-40m) optionalDifferent lengths for different usage
V1.4 up to 100m(1-100m) optional
ElectricalsPackaging & Delivery
Quality Controloperation according to regulations & rules in ISO9001:2008

Packaging Details:Polybag for individual package and carton box for container shipment.

Or at customer's request.

VoltageDC300V 5M ohm/10msPort:Shen zheng
Insulation Resistance10M minLead Time :
Contact Resistance2 ohm maxQuantity(Pieces)500 - 20002001 - 50005001 - 8000>8000
Working Temperature-25C-80CEst. Time(days)141721To be negotiated
Data transfer rate18Gbps Max




Differential Impedance100±10Ω(TDR)
