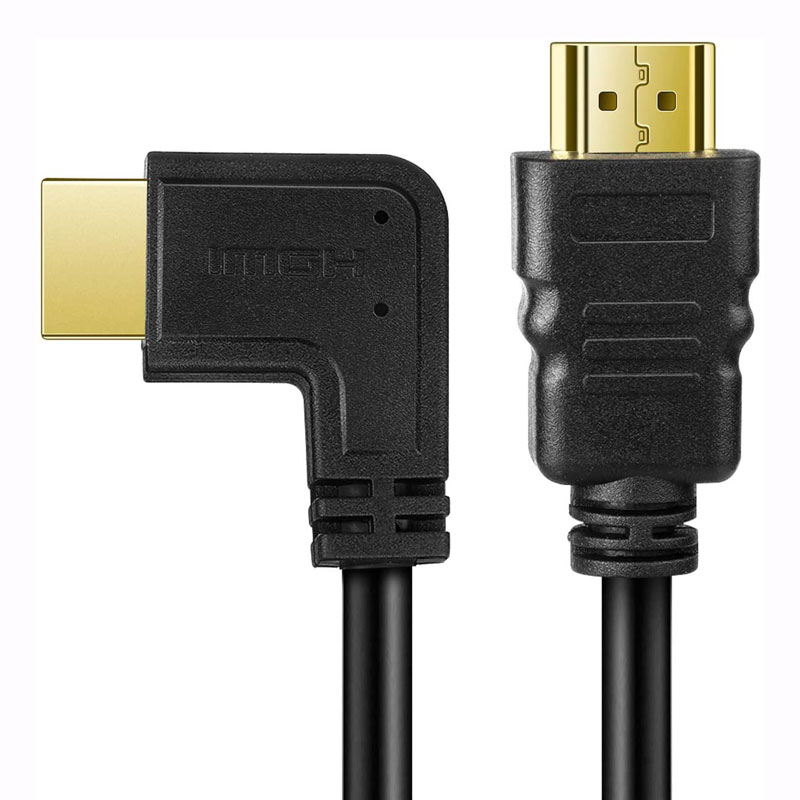

90 Degree Left Angle Hdmi To Hdmi Cable Hd1065

90 Degree Left Angle Hdmi To Hdmi Cable HD1065

Model No：: HD1065

Versions: 1.4v,2.0v (optional)

Appearance:: Injection Plastic

Connector Type：: HDMI 19 P A/M to A/M

Connector:: 24k Gold-plated

Conductor：: High purity Oxygen Free Copper (CU)

Gauge:: AWG: 24/26/28/30(optional)

Insulation:: HD-PE

Shielding:: AL+ ML+ Braiding (Triple shielding )

Outer Diamete:: 6.0mm ,7.3mm,8.0mm,9.0mm（optional）

Jacket:: pvc

Color:: Black (optional)

Length:: 3FT to 16FT (1m-5m) optional

Price: Get Latest Price

Inquire Online

Parameters

这里可以自定义设置

HDMI CABLE

High Definition Multimedia Interface (HDMI) is a kind of interface standard with both high definition digital video and digital audio transmission capability, which is a special digital interface suitable for image transmission, and can also transmit audio and image signals at the same time, with the maximum data transmission speed of 48 Gbps.At the same time, the digital/analog or analog/digital conversion is not needed before signal transmission. HDMI cable is an all-digital video and audio transmission line, which can be used to transmit audio and video signals without any compression, providing bandwidth support for 2K/60Hz, 4K/60Hz, 8K/60HZ and higher resolution; Supports 3D, HDR and Ethernet, voice feedback function. It is mainly used for video and audio signal transmission of plasma TV, HD player, LCD TV, rear projection TV, projector, DVD recorder/projector, D-VHS recorder/projector and digital video and audio display device. HDMI cable has the advantages of small size, high transmission rate, wide transmission bandwidth, good compatibility, and can transmit uncompressed audio and video signals at the same time. Compared with the traditional full analog interface, HDMI not only increases the convenience of equipment interconnection, but also provides some unique intelligent functions of HDMI.

这里可以自定义设置

Functional Specifications

■ Supports 3D, Ethernet and Audio Return

■ Guaranteed 2160p, 1440p, 1080p, 1080i, 720p, 480p, and 480i Resolutions.

■ Works with all HDTVs, Blu-ray players, Xbox, PlayStation and other HDMI devices.

■ 1.4v Supports Transfer Rates of Up to 10.2 Gbps 2.0v Supports Transfer Rates of Up to 18 Gbps

■ Other Ethernet Sharing, HDCP Compliant, CEC Supported.

■ Supports True HD Dolby 7.1 and DTS-HD Master Audio.

■ Compatible with any device equipped with HDMI jack.

■ Application:LCD/LED TV computer High definition multimedia.

■ Packing:PE bag;Custom: OEM ODM;Supply Ability:3000000 Piece/Pieces per Month.

Wire Structure Drawing

Specification		Advantages
Conductors	99.99% Oxygen-free copper	to deliver high-quality and stable digital signal
Insulation (inner jacket)	HD-PE	Using foamed PE as the insulation, ensure image quality and transmit image signal with stability.
First shielding	100% Aluminum foil	prevent high frequency noises and interference of outward electromagnetic energy
Second shielding	100% Aluminum foil	prevent high frequency noises and interference of outward electromagnetic energy
Third shielding	95% AL+MG braid	for maximum avoiding of EMI and RFI
Insulation (Outer jacket)	Environmental PVC jacket/protective nylon sleeve. (color optional)	Long lifetime; good protection for cable;
Insulation (Outer jacket)		Safe
appearance	Injection Plastic,Zn or Al alloy Metal shell type	Nice looking, high-end HDMI CABLE product
appearance	Injection Plastic,Zn or Al alloy Metal shell type	Nice looking, high-end HDMI CABLE product
Connector	Gold plated	ensure superior signal transfer and lifetime of maximum performance
Configuration	19+1 pin	Fully compliant to V2.0 specification
Certification	RoHS,UL,CE	Authorized Certification for safety and security
Color	Pearl golden, Matte black, Silver, Golden, Shiny black, white porcelain, black porcelain,chromel AND MORE	Variety of color options and attractive design to meet the needs of different customers
Available gauge	24/26/28/30AWG	AWG optional
Outer Diamete	W13.5mm X H3.55mm W16.8mm X H3.8mm W20.5mm X H4.5mm	AWG is correspondent to outer diameter.
		24AWG-W20.5mm X H4.5mm , 26AWG-W16.8mm X H3.8mm
		28AWG-W13.5mm X H3.55mm , 30AWG-W13.5mm X H3.55mm
Available versions and lengths	V2.0 up to 40m(1-40m) optional	Different lengths for different usage
Available versions and lengths	V1.4 up to 100m(1-100m) optional	Different lengths for different usage

Electricals		Packaging & Delivery
Quality Control	operation according to regulations & rules in ISO9001:2008	Packaging Details:Polybag for individual package and carton box for container shipment. Or at customer's request.
Voltage	DC300V 5M ohm/10ms	Port:Shen zheng
Insulation Resistance	10M min	Lead Time :
Contact Resistance	2 ohm max	Quantity(Pieces)	500 - 2000	2001 - 5000	5001 - 8000	>8000
Working Temperature	-25C-80C	Est. Time(days)	14	17	21	To be negotiated
Data transfer rate	18Gbps Max
Differential Impedance	100±10Ω(TDR)
