HD1059
High Definition Multimedia Interface (HDMI) is a kind of interface standard with both high definition digital video and digital audio transmission capability, which is a special digital interface suitable for image transmission, and can also transmit audio and image signals at the same time, with the maximum data transmission speed of 48 Gbps.At the same time, the digital/analog or analog/digital conversion is not needed before signal transmission. HDMI cable is an all-digital video and audio transmission line, which can be used to transmit audio and video signals without any compression, providing bandwidth support for 2K/60Hz, 4K/60Hz, 8K/60HZ and higher resolution; Supports 3D, HDR and Ethernet, voice feedback function. It is mainly used for video and audio signal transmission of plasma TV, HD player, LCD TV, rear projection TV, projector, DVD recorder/projector, D-VHS recorder/projector and digital video and audio display device. HDMI cable has the advantages of small size, high transmission rate, wide transmission bandwidth, good compatibility, and can transmit uncompressed audio and video signals at the same time. Compared with the traditional full analog interface, HDMI not only increases the convenience of equipment interconnection, but also provides some unique intelligent functions of HDMI.
Functional Specifications
■ Supports 3D, Ethernet and Audio Return
■ Guaranteed 8K4K2K/ 2160p/60HZ Resolutions
■ Works with all HDTVs, Blu-ray players, Xbox, PlayStation and other HDMI devices
■ 2.0v Supports Transfer Rates of Up to 18 Gbps
■ Other Ethernet Sharing, HDCP Compliant, CEC Supported.
■ Supports True HD Dolby 7.1 and DTS-HD Master Audio.
■ Compatible with any device equipped with HDMI jack.
■ Application:LCD/LED TV computer High definition multimedia.
■ Packing:PE bag;Custom: OEM ODM;Supply Ability:3000000 Piece/Pieces per Month.
| Specification | Advantages | |
| Conductors | 99.99% Oxygen-free copper | to deliver high-quality and stable digital signal |
| Insulation (inner jacket) | HD-PE | Using foamed PE as the insulation, ensure image quality and transmit image signal with stability. |
| First shielding | 100% Aluminum foil | prevent high frequency noises and interference of outward electromagnetic energy |
| Second shielding | 100% Aluminum foil | prevent high frequency noises and interference of outward electromagnetic energy |
| Third shielding | 95% AL+MG braid | for maximum avoiding of EMI and RFI |
| Insulation (Outer jacket) | Environmental PVC jacket/protective nylon sleeve. (color optional) | Long lifetime; good protection for cable; |
| Safe | ||
| appearance | Injection Plastic,Zn or Al alloy Metal shell type | Nice looking, high-end HDMI CABLE product |
| Connector | Gold plated | ensure superior signal transfer and lifetime of maximum performance |
| Configuration | 19+1 pin | Fully compliant to V2.0 specification |
| Certification | RoHS,UL,CE | Authorized Certification for safety and security |
| Color | Pearl golden, Matte black, Silver, Golden, Shiny black, white porcelain, black porcelain,chromel AND MORE | Variety of color options and attractive design to meet the needs of different customers |
| Available gauge | 24/26/28AWG | AWG optional |

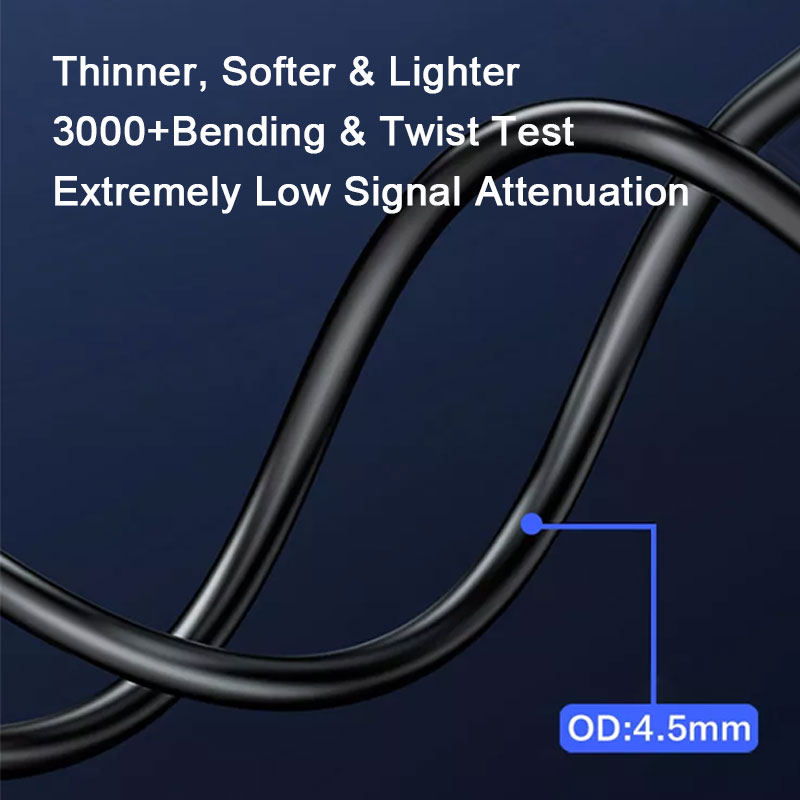

| Outer Diamete | 4.5mm | AWG is correspondent to outer diameter. |
| 24AWG-10.0mm， 26AWG-9.0mm | ||
| 28AWG-8.0mm | ||
| Available versions and lengths | 1.4v,2.0v up to 200m(1-200m) optional | Different lengths for different usage |
| 2.1v up to 100m(1-100m) optional | ||
| Electricals | Packaging & Delivery | |||||
| Quality Control | operation according to regulations & rules in ISO9001:2008 | Packaging Details:Polybag for individual package and carton box for container shipment. Or at customer's request. | ||||
| Voltage | DC300V 5M ohm/10ms | Port:Shen zheng | ||||
| Insulation Resistance | 10M min | Lead Time : | ||||
| Contact Resistance | 2 ohm max | Quantity(Pieces) | 500 - 2000 | 2001 - 5000 | 5001 - 8000 | >8000 |
| Working Temperature | -25C-80C | Est. Time(days) | 14 | 17 | 21 | To be negotiated |
| Data transfer rate | 18Gbps Max | |||||
| Differential Impedance | 100±10Ω(TDR) | |||||
HDMI Cable is a cable that allows you to plug your favorite device's HDMI port into a TV's. With high-speed HDMI cable, you can enjoy crystal clear audio and video on your TV for an immersive entertainment experience. .USB Cable is a cable that can be used to connect various electronic devices. USB cables are used for connecting chargeable mobile devices like mobile phones, tablets, and more. .
Black HDMI Cable is the industry's first full-featured, high-speed HDMI cable, boasting 2.0v of bandwidth and an 18Gbps bandwidth transfer rate. It supports 3D, Ethernet and Audio Return, with guaranteed 8K4K2K/ 2160p/60HZ resolution to ensure a perfect picture on any TV. Black HDMI Cable works for all HDTVs, Blu-ray players, Xbox, PlayStation and other HDMI devices.
The most common USB cable is a standard USB 2.0 cable that has a male connector at one end and female connector at the other.A standard USB 2.0 cable has four wires inside the sheath: two are for power, two are for data. One wire carries power, while the other carries the data signal.
