Displayport To Hdmi Cable Hd902

Parameters

Hdera

DisplayPort is a display interface published by the Video Electronics Standards Association (VESA).As the successor of DVI, DisplayPort will add support for high-definition audio signal transmission while transmitting video signals, and support higher resolution and refresh rate. It can support single channel, one-way, four-line connection, data transfer rate of 32Gbps, support 8K @ 60hz, 4K @ 144Hz, 4KHDR @ 120Hz, 2K @ 165Hz ultra-high refresh rate, support 10BitHDR, G-SYNC and FreeSync technology. Enough to transmit uncompressed video and associated audio. It is widely used in connecting computers, monitors, home theaters and so on.

DisplayPort to DisplayPort Cable

这里可以自定义设置

Functional Specifications

■ Guaranteed 8K 60Hz 、4K 120Hz HDR Resolutions.

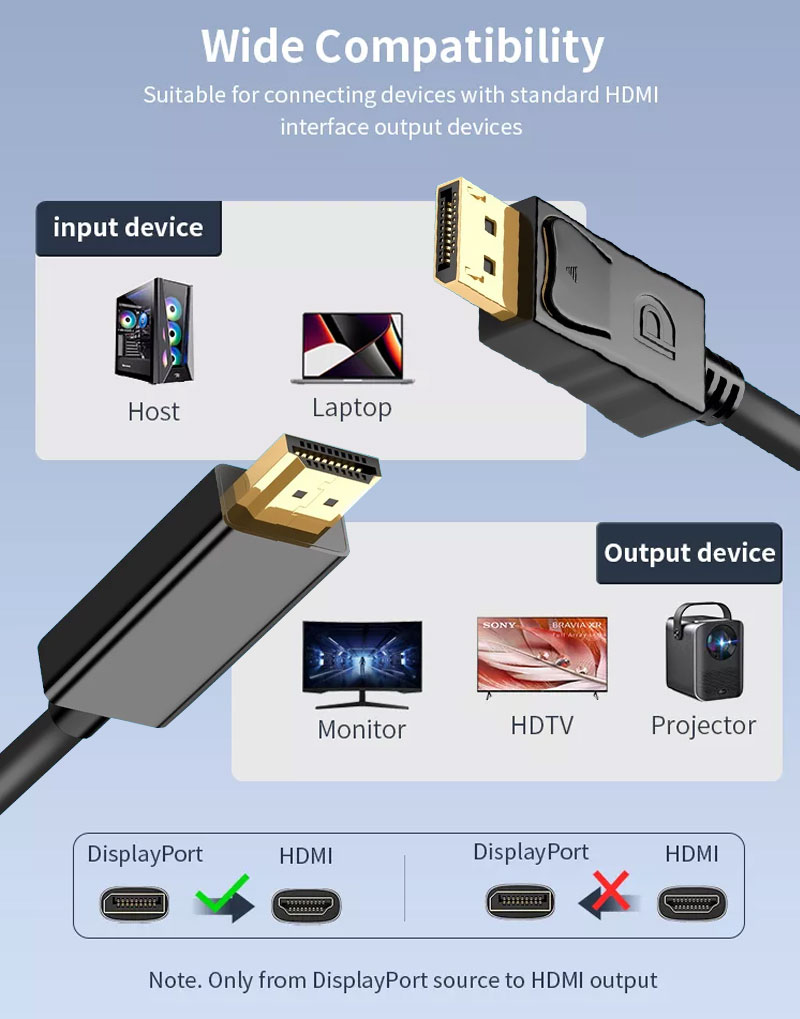

■ Works with all HDTVs, Blu-ray players, Xbox, PlayStation and other DP devices.

■ 1.4v Supports Transfer Rates of Up to 32.4 Gbps.

■ Supports True HD Dolby 7.1 and DTS-HD Master Audio.

■ Compatible with any device equipped with DP jack.

■ Application:LCD/LED TV computer High definition multimedia.

■ Packing:PE bag.

■ Custom: OEM ODM.

■ Supply Ability:10000 Piece/Pieces per Month.

Wire Structure Drawing

这里可以自定义设置

Specification		Advantages
Conductors	99.99% Oxygen-free copper	to deliver high-quality and stable digital signal
Insulation (inner jacket)	HD-PE	Using foamed PE as the insulation, ensure image quality and transmit image signal with stability.
First shielding	100% Aluminum foil	prevent high frequency noises and interference of outward electromagnetic energy
Second shielding	100% Aluminum foil	prevent high frequency noises and interference of outward electromagnetic energy
Third shielding	95% AL+MG braid	for maximum avoiding of EMI and RFI
Insulation (Outer jacket)	Environmental PVC jacket/protective nylon sleeve. (color optional)	Long lifetime; good protection for cable;
Insulation (Outer jacket)		Safe
appearance	Injection Plastic,Zn or Al alloy Metal shell type	Nice looking, high-end Display port Cabel product
appearance	Injection Plastic,Zn or Al alloy Metal shell type	Nice looking, high-end Display port Cabel product
Connector	Gold plated	ensure superior signal transfer and lifetime of maximum performance
Configuration	20+1 pin	Fully compliant to V1.4 specification
Certification	RoHS,UL,CE	Authorized Certification for safety and security
Color	Pearl golden, Matte black, Silver, Golden, Shiny black, white porcelain, black porcelain, chromel AND MORE	Variety of color options and attractive design to meet the needs of different customers
Available gauge	24/26/28/30AWG	AWG optional
Outer Diamete	7.3mm	AWG is correspondent to outer diameter.
		24AWG-9.0mm 26AWG-8.0mm
		28AWG-7.3mm 30AWG-6.0mm
Available versions and lengths	V1.4 up to 5m(1-5m) optional	Different lengths for different usage
Available versions and lengths	V2.0 up to 5m(1-5m) optional	Different lengths for different usage

Electricals		Packaging & Delivery
Quality Control	operation according to regulations &rules in ISO9001:2008	Packaging Details	Polybag for individual package and carton box for container shipment. Or at customer's request.
Voltage	DC300V 5M ohm/10ms	Port	shen zheng
Insulation Resistance	10M min	Lead Time
Contact Resistance	2 ohm max	Quantity(Pieces)	500 - 2000	2001 - 5000	5001 - 8000	>8000
Working Temperature	-25C-80C	Est. Time(days)	14	17	20	To be negotiated
Data transfer rate	32.4Gbps Max
Differential Impedance
