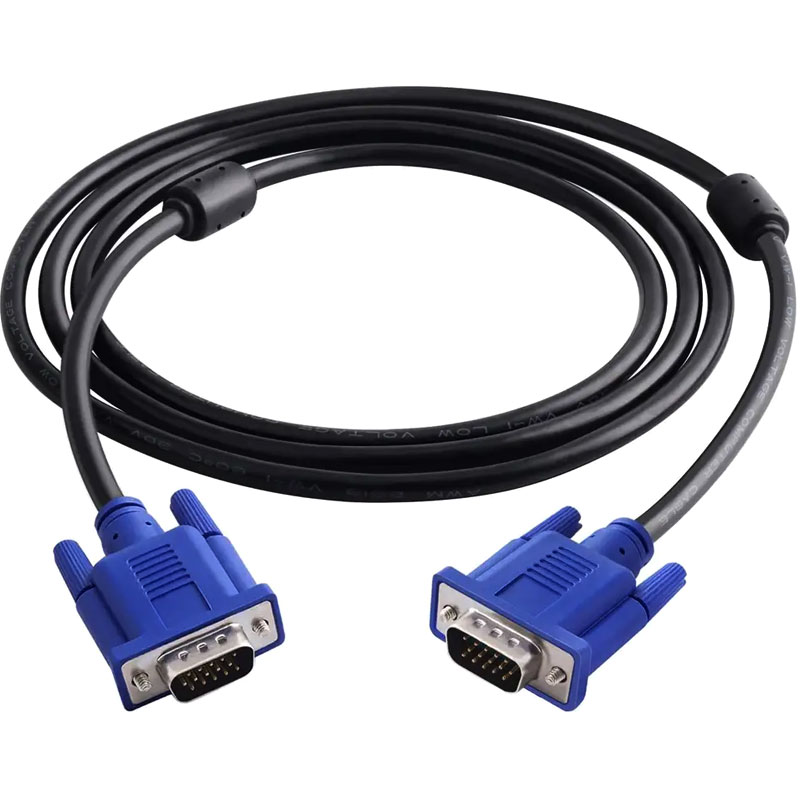

Nickel -plated VGA cable HD7002

这里可以自定义设置
Nickel -plated VGA cable HD7002
Model No:
HD7002
Versions
3+6
Appearance:
Injection Plastic
Connector Type:
VGA 15P A/M to A/M
Connector:
Nickel -plated
Conductor:
High purity Oxygen Free Copper (CU)
Gauge:
AWG: 28/30(optional)
Insulation:
HD-PE
Shielding:
AL+ Braiding (Triple shielding )
Outer Diamete:
8.0mm
Jacket:
PVC
Color:
Black (optional)

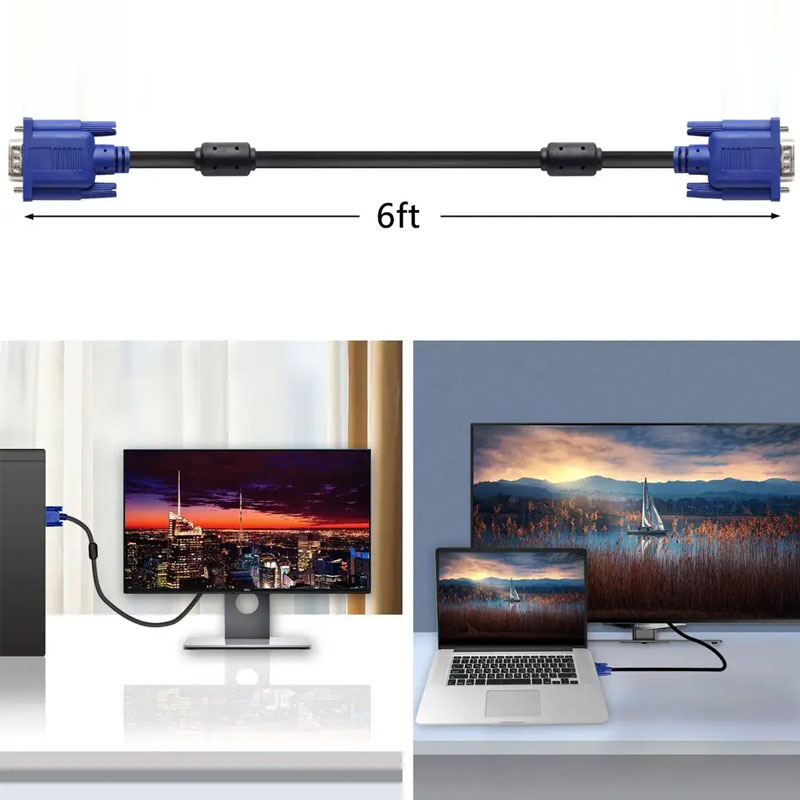

Length:
3FT to165FT (1m-50m) optional
参数暂无数据

Add success, do you want to check your shopping cart?

暂无分享
该产品后台详情无内容
Since 2012, we Huizhou HD Times Technology Co., Ltd. are a magnanimous manufacturer, distributor, supplier, importer and exporter of Different Types of Electronic Goods. We offer our customers, competent and profitable VGA cable and many more. All the products available with us is made of prized quality raw material which are sourced from best shot vendors of the market. Our products are widely well-known for their impressive characteristics such as Reliable performance, longevity and bold finishing. Our organizations, client-centric approach enables us to provide maximum satisfaction to our valuable clients. All our products are manufactured under the strict supervision of our professionals following the industrial standards. We meet our customers' requirements by offering them these products in numerous sizes and styles as per the specifications of the patrons. Further, our state-of-the-art infrastructure facilities installed with advanced machinery enables us to deliver quality products to our patrons. Our smart and intellectual personnel ensure that only flawless range of product line is provided to our clients within the agreed time-frame. Moreover, we owe our huge client base to our responsible personnels and smart business plans.
这里可以自定义设置

Functional Specifications



■  Digital TV-CBLE, satellite, and terrestrial broadcasts.



■  Digital movies-DVDs.



■  Digital displays-Plasma, LCD, DLP, LCOS.



■  4.Digital interactivity-PVRs, MHP, OCAP.



■  D-VHS players.



■  Audio/Video receivers



■  Supports resolutions at 800x600 (SVGA), 1024x768 (XGA), 1600x1200 (UXGA), 1080p (Full HD), 1920x1200 (WUXGA), and up for high resolution LCD and LED monitors.



■  Packing:PE bag; Custom:  OEM  ODM; Supply Ability:100000 Piece/Pieces per Month.

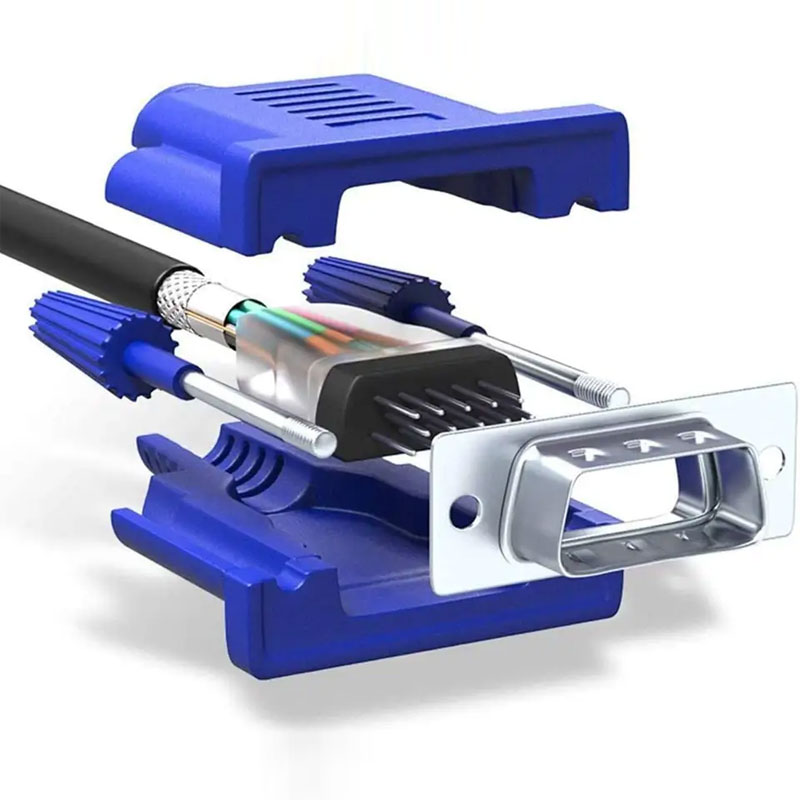

Wire Structure Drawing

这里可以自定义设置
SpecificationAdvantages
Conductors99.99% Oxygen-free copperto deliver high-quality and stable digital signal
Insulation (inner jacket)HD-PEUsing foamed PE as the insulation, ensure image quality and transmit image signal with stability.
First shielding100% Aluminum foilprevent high frequency noises and interference  of outward electromagnetic energy
Second shielding100% Aluminum foilprevent high frequency noises and interference of outward electromagnetic energy
Third shielding95% AL+MG braidfor maximum avoiding of EMI and RFI
Insulation (Outer jacket)Environmental PVC jacket/protective nylon sleeve. (color optional)Long lifetime; good protection for cable;
Safe
appearanceInjection PlasticNice looking, high-end VGA Cabel product
ConnectorGold platedensure superior signal transfer and lifetime of maximum performance

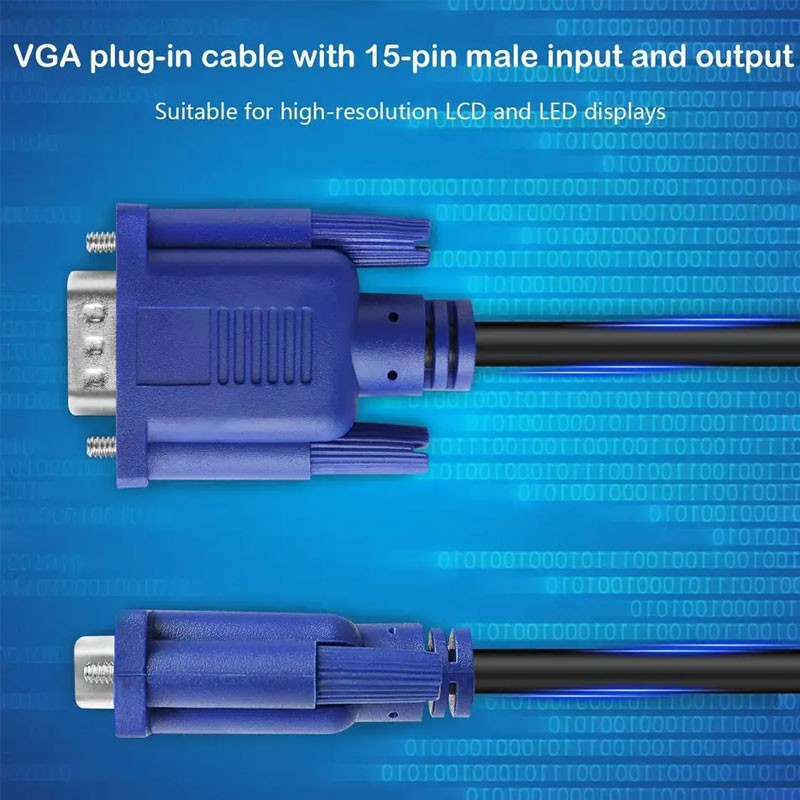

Configuration15+1 pinFully compliant to  specification
CertificationRoHS,UL,CEAuthorized Certification for safety and security
Color

Available gauge24/26/28/30AWGAWG optional
Outer Diamete10.0mm, 9.0mm, 8.0mm,7.3mmAWG is correspondent to outer diameter.
24AWG-10.0mm , 26AWG-9.0mm
28AWG-8.0mm ,  30AWG-7.3mm
Available versions and lengths3+4 up to 40m(1-40m) optionalDifferent lengths for different usage
3+6 up to 50m(1-50m) optional
ElectricalsPackaging & Delivery
Quality Controloperation according to regulations & rules in ISO9001:2008

Packaging Details: Polybag for individual package and carton box for container shipment.

Or at customer's request.

VoltageDC300V 5M ohm/10msPort: Shen zheng
Insulation Resistance10M minLead Time:
Contact Resistance2 ohm maxQuantity(Pieces)500 - 20002001 - 50005001 - 8000>8000
Working Temperature-25C-80CEst. Time(days)141721To be negotiated
Data transfer rate





Differential Impedance
