Injection Plastic DVI cable HD5007

Model No：: HD5007

Appearance:: Injection Plastic

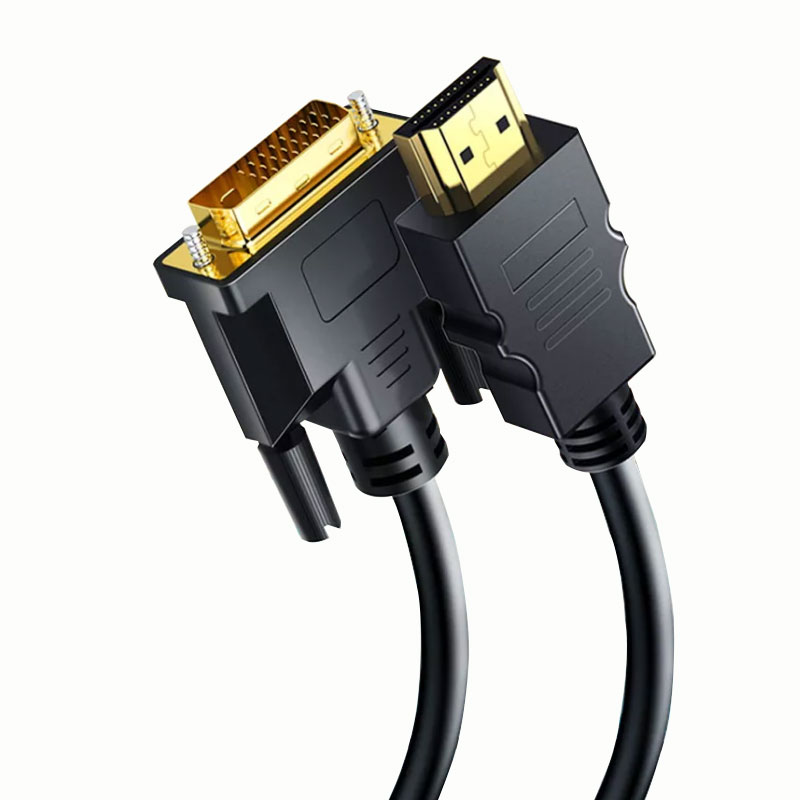

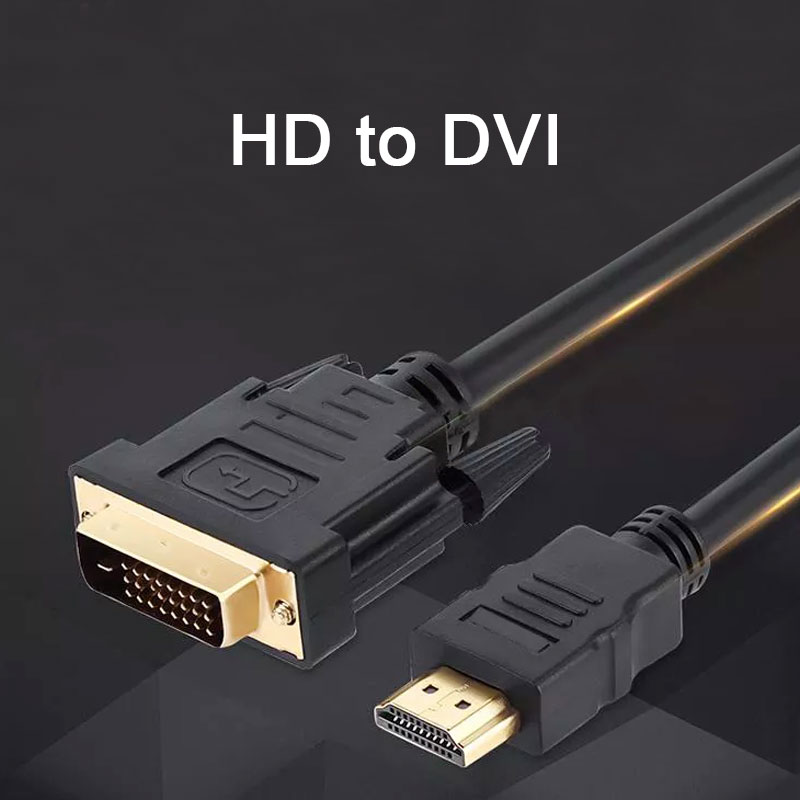

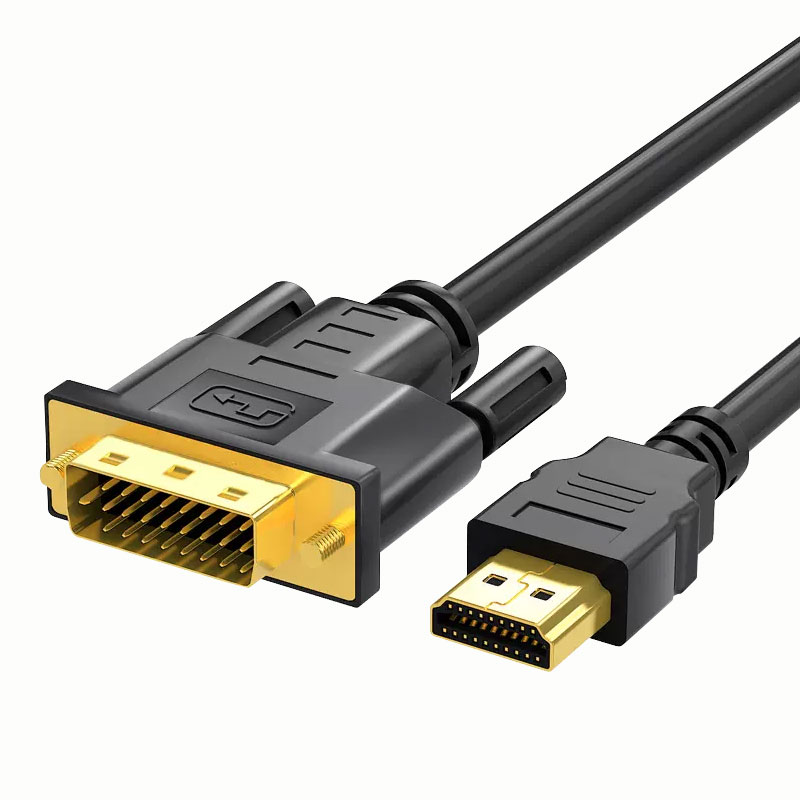

Connector Type：: HDMI19 P A/M to DVI24+1 P A/M

Connector:: 24k Gold-plated

Conductor：: High purity Oxygen Free Copper (CU)

Gauge:: AWG: 28/30(optional)

Insulation:: HD-PE

Shielding:: AL+ ML+ Braiding (Triple shielding )

Outer Diamete:: 7.3mm

Jacket:: PVC

Color:: Black (optional)

Length:: 3FT to 100FT (1m-30m) optional

Inquire Online
Download

Cancel
Customize

Add success, do you want to check your shopping cart?

Ok Close

Hdera

DVI Is based on TMDS (TransiTION Minimized Differential Signaling).TMDS uses advanced coding algorithm to convert 8bit data (each primary color signal in R, G, B) into 10bit data (including row-field synchronization information, clock information, data DE, error correction, etc.) Through minimum conversion coding. After DC balance, the data is transmitted by differential signal. Compared with TTL, TTL has better electromagnetic compatibility performance, and can realize long-distance and high-quality digital signal transmission with low-cost special cable.Maximum resolution support: 2560x1600, 60Hz/1920x1080, 120Hz. Connection transmission structure of TMDS technology. Digital Video Interface (DVI) is an international open interface standard, which is widely used in PC, DVD, HDTV, high definition projector and so on. DVI line advantage: the transmission is the digital signal, the digital image information does not need to pass through any conversion, can be transmitted directly to the display equipment, therefore reduced the digital-analog-digital tedious conversion process, saved the time greatly, therefore its speed is quicker, eliminates the smear phenomenon effectively, moreover uses DVI to carry on the data transmission, the signal has not attenuated, the color is purer. More realistic, clear picture, support HDCP protocol.

该产品后台详情无内容

Banking upon our vast knowledge and experience, we, Huizhou HD Times Technology Co., Ltd. established in 2012, have been able to manufacture an expansive assortment of Electrical and Electronic Cords & Accessories. With the use of cutting-edge technology, we have been able to develop innovative products. Our range comprises DVI cable. Our range finds extensive application in commercial, residential and industrial establishments. Developed after comprehensive research, our range is known for delivering excellent and reliable performance. Our diligent team, advanced manufacturing facility and stringent quality control system give us a competitive edge-over our industry counterparts. Owing to our resolve of achieving maximum client satisfaction, we manufacture the products after understanding the requirements of our clients. Furthermore, we are capable of customizing the products as per the specific requirements of the customers.

这里可以自定义设置

Functional Specifications

■ Application:PC, computer to projector, plasma TV, LCD or CRT monitor, or flat-panel receiver, High definition multimedia

■ Supports hot plugging of DVI display devices.

■ Resolutions up to1920x1080/60Hz

■ Supports digital signal only

■ Packing:PE bag

■ Custom: OEM ODM

■ Supply Ability:100000 Piece/Pieces per Month.

这里可以自定义设置

Parameters

Specification		Advantages

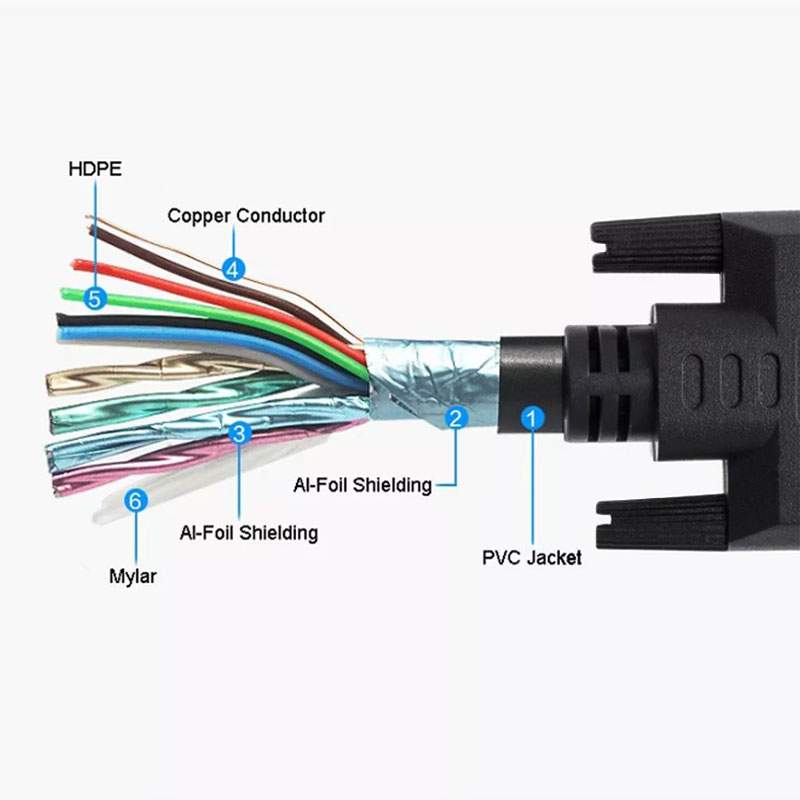

Conductors	99.99% Oxygen-free copper	to deliver high-quality and stable digital signal
Insulation (inner jacket)	HD-PE	Using foamed PE as the insulation, ensure image quality and transmit image signal with stability.
First shielding	100% Aluminum foil	prevent high frequency noises and interference of outward electromagnetic energy
Second shielding	100% Aluminum foil	prevent high frequency noises and interference of outward electromagnetic energy
Third shielding	95%AL+MGbraid	for maximum avoiding of EMI and RFI
Insulation (Outer jacket)	Environmental PVC jacket/protective nylon sleeve. (color optional)	Long lifetime; good protection for cable;
Insulation (Outer jacket)		Safe
appearance	Injection Plastic,Zn alloy Metal shell type	Nice looking, high-end DVI CABLE product
appearance	Injection Plastic,Zn alloy Metal shell type	Nice looking, high-end DVI CABLE product

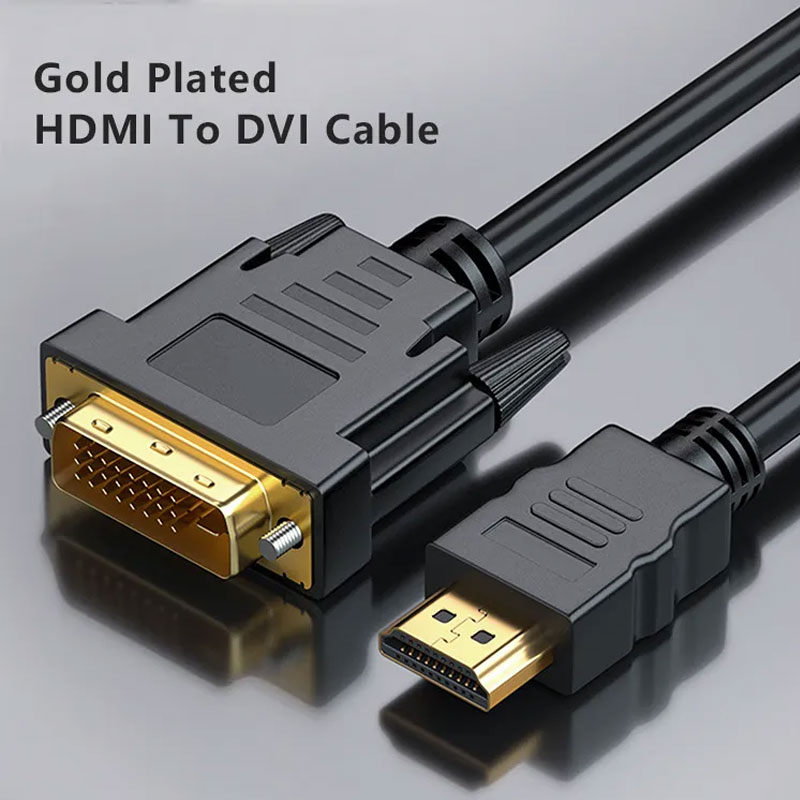

Connector	Gold plated	ensure superior signal transfer and lifetime of maximum performance

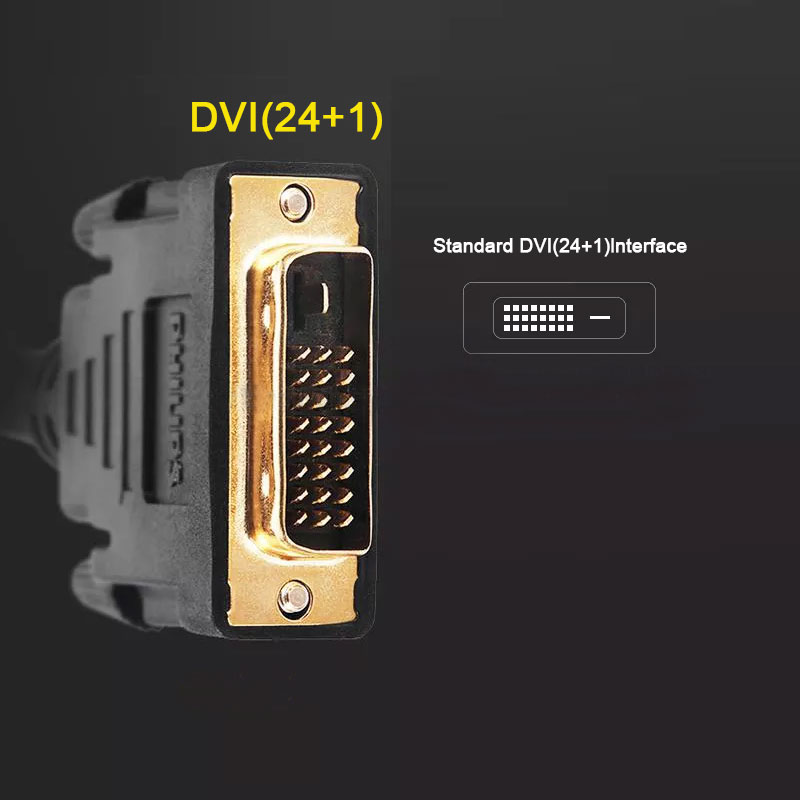

Configuration	24+1 pin	Fully compliant to DVI specification
Certification	RoHS,UL,CE	Authorized Certification for safety and security
Color	Pearl golden, Matte black, Silver, Golden, Shiny black, white porcelain, black porcelain, chromel AND MORE	Variety of color options and attractive design to meet the needs of different customers
Available gauge	24/26/28/30AWG	AWG optional
Outer Diamete	6.0MM,7.3MM,8.0MM 9.0MM	AWG is correspondent to outer diameter.
		24AWG-9.0mm , 26AWG-8.0MM
		28AWG-7.3mm , 30AWG-6.0mm
Available versions and lengths	up to 40m optional	Different lengths for different usage
Available versions and lengths	up to 40m optional	Different lengths for different usage

Electricals		Packaging & Delivery
Quality Control	operation according to regulations & rules in ISO9001:2008	Packaging Details:Polybag for individual package and carton box for container shipment. Or at customer's request.
Voltage	DC300V 5M ohm/10ms	Port:Shen zheng
Insulation Resistance	10M min	Lead Time:
Contact Resistance	2 ohm max	Quantity(Pieces)	500 - 2000	2001 - 5000	5001 - 8000	>8000
Working Temperature	-25C-80C	Est. Time(days)	14	20	25	To be negotiated
Data transfer rate	10Gbps Max
Differential Impedance	100±10Ω(TDR)
