Injection Plastic Hdmi Cable Hd1010

Parameters

这里可以自定义设置

Functional Specifications

■ Supports 3D, Ethernet and Audio Return

■ Guaranteed 2160p, 1440p, 1080p, 1080i, 720p, 480p, and 480i Resolutions.

■ Works with all HDTVs, Blu-ray players, Xbox, PlayStation and other HDMI devices.

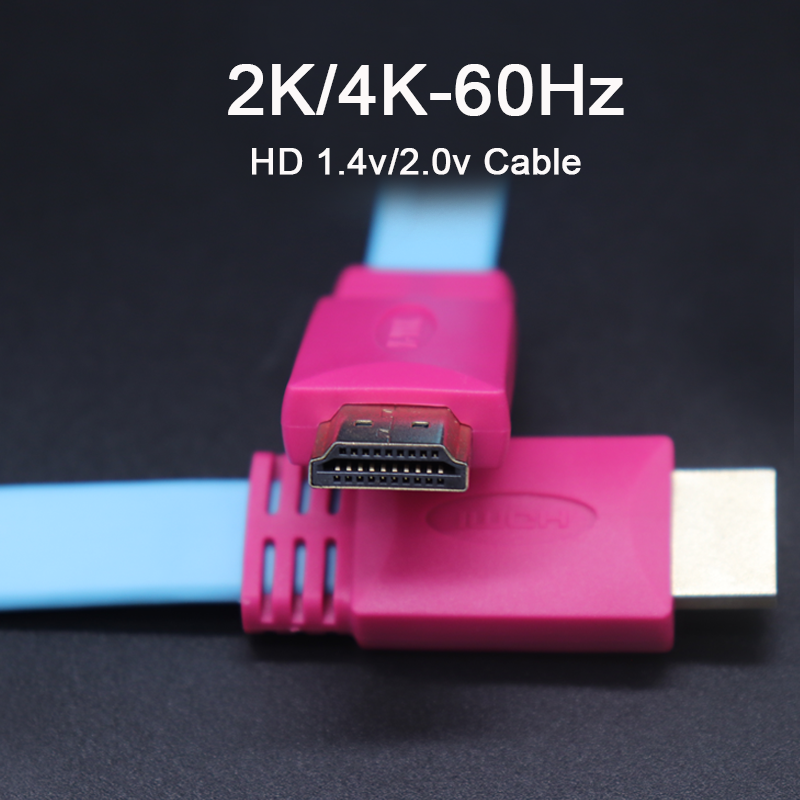

■ 1.4v Supports Transfer Rates of Up to 10.2 Gbps 2.0v Supports Transfer Rates of Up to 18 Gbps

■ Other Ethernet Sharing, HDCP Compliant, CEC Supported.

■ Supports True HD Dolby 7.1 and DTS-HD Master Audio.

■ Compatible with any device equipped with HDMI jack.

■ Application:LCD/LED TV computer High definition multimedia.

■ Packing:PE bag;Custom: OEM ODM;Supply Ability:3000000 Piece/Pieces per Month.

Wire Structure Drawing

这里可以自定义设置

Specification		Advantages
Conductors	99.99% Oxygen-free copper	to deliver high-quality and stable digital signal
Insulation (inner jacket)	HD-PE	Using foamed PE as the insulation, ensure image quality and transmit image signal with stability.
First shielding	100% Aluminum foil	prevent high frequency noises and interference of outward electromagnetic energy
Second shielding	100% Aluminum foil	prevent high frequency noises and interference of outward electromagnetic energy
Third shielding	95% AL+MG braid	for maximum avoiding of EMI and RFI
Insulation (Outer jacket)	Environmental PVC jacket/protective nylon sleeve. (color optional)	Long lifetime; good protection for cable;
Insulation (Outer jacket)		Safe
appearance	Injection Plastic,Zn or Al alloy Metal shell type	Nice looking, high-end HDMI CABLE product
appearance	Injection Plastic,Zn or Al alloy Metal shell type	Nice looking, high-end HDMI CABLE product

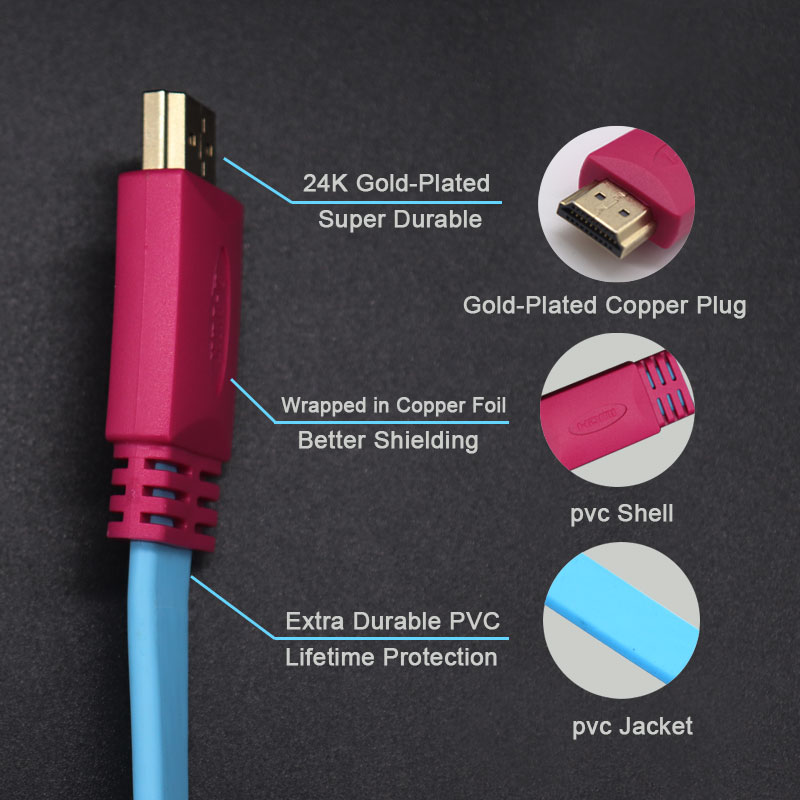

Connector	Gold plated	ensure superior signal transfer and lifetime of maximum performance
Configuration	19+1 pin	Fully compliant to V2.0 specification
Certification	RoHS,UL,CE	Authorized Certification for safety and security
Color	Pearl golden, Matte black, Silver, Golden, Shiny black, white porcelain, black porcelain,chromel AND MORE	Variety of color options and attractive design to meet the needs of different customers
Available gauge	24/26/28/30AWG	AWG optional
Outer Diamete	W13.5mm X H3.55mm W16.8mm X H3.8mm W20.5mm X H4.5mm	AWG is correspondent to outer diameter.
		24AWG-W20.5mm X H4.5mm , 26AWG-W16.8mm X H3.8mm
		28AWG-W13.5mm X H3.55mm , 30AWG-W13.5mm X H3.55mm
Available versions and lengths	V2.0 up to 40m(1-40m) optional	Different lengths for different usage
Available versions and lengths	V1.4 up to 100m(1-100m) optional	Different lengths for different usage

Electricals		Packaging & Delivery
Quality Control	operation according to regulations & rules in ISO9001:2008	Packaging Details:Polybag for individual package and carton box for container shipment. Or at customer's request.
Voltage	DC300V 5M ohm/10ms	Port:Shen zheng
Insulation Resistance	10M min	Lead Time :
Contact Resistance	2 ohm max	Quantity(Pieces)	500 - 2000	2001 - 5000	5001 - 8000	>8000
Working Temperature	-25C-80C	Est. Time(days)	14	17	21	To be negotiated
Data transfer rate	18Gbps Max
Differential Impedance	100±10Ω(TDR)

Injection Plastic HDMI Cable HD1010
